New · Part number: ALAM-5003-1/-2

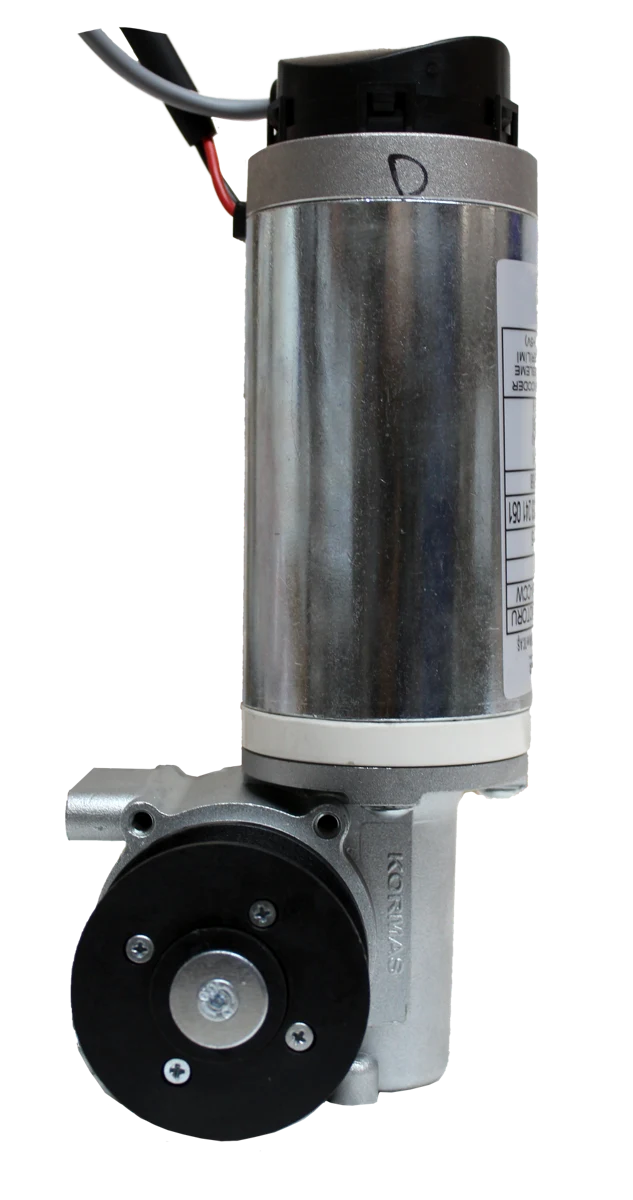

Motor with Door Operator Gear H
What you need to know about this product
- 24 V motor with encoder for H-type door opening operation. Its function is to open the elevator car doors through a gear mechanism and rubber belt, includes an encoder that allows transforming the motor movement into an electrical signal and transmits the data to the car door operator board.
- Features
- Nominal voltage: 24 VDC.
- Nominal speed: 230 RPM
- Protection degree: IP44
- Shipping to be quotedYou only pay for the products; an advisor will quote shipping after your purchase.
Online checkout is paused for now: add the parts to your quote and an advisor will reply with the final price, shipping and how to pay.
- Sold by Elevadores Alamex · over 20 years in the elevator industry · ISO 9001 certified.
What you need to know about this product
- 24 V motor with encoder for H-type door opening operation. Its function is to open the elevator car doors through a gear mechanism and rubber belt, includes an encoder that allows transforming the motor movement into an electrical signal and transmits the data to the car door operator board.
- Features
- Nominal voltage: 24 VDC.
- Nominal speed: 230 RPM
- Protection degree: IP44
Specifications
| Part number | ALAM-5003-1/-2 |
|---|
Data from the Alamex catalog. Reference images; specifications may vary by model.
Description
24 V motor with encoder for H-type door opening operation. Its function is to open the elevator car doors through a gear mechanism and rubber belt, includes an encoder that allows transforming the motor movement into an electrical signal and transmits the data to the car door operator board. Features Nominal voltage: 24 VDC. Nominal speed: 230 RPM Protection degree: IP44 Encoder: 5V, 2 channels, 100 pulses Direction of rotation: clockwise and counterclockwise. Includes gear wheel
